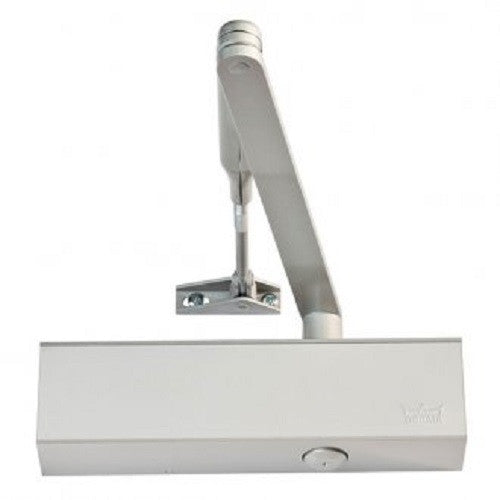

Dorma Closer TS73 EN1-4 SIL B/Check D/Action P/ARM BRKT
Availability : In Stock
The DORMA TS73 EN 1-4 closer is a non-handed closer suited to internal doors including fire doors.
Power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm.
Backcheck is self regulating or adjustable by valve and delayed action is also adjustable.
Suitable for standard doors installation up to 1100 mm (W).
Suitable for fire doors.
| Dimensions | Weight |
| 245 mm (L) x 46 mm (W) x 60 mm (H) | 1.7kg |
- Dorma TS73 regular door closer.
- Ideal for commercial applications.
- Variable closing force size EN1-4.
- Overhead surface mounted door closer.
- Adjustable latching action by valve.
- Adjustable backcheck.
- Adjustable delay action.
- For standard internal doors up to 1100 mm.
- Includes parallel arm bracket.
- Parallel arm mounting doors up to 950 mm.
- Standard arm assembly.
- Fire rated.
- Finished in silver.
